12v supply, 3 hall sensor, three phase brushless dc motor drive reference deisgn

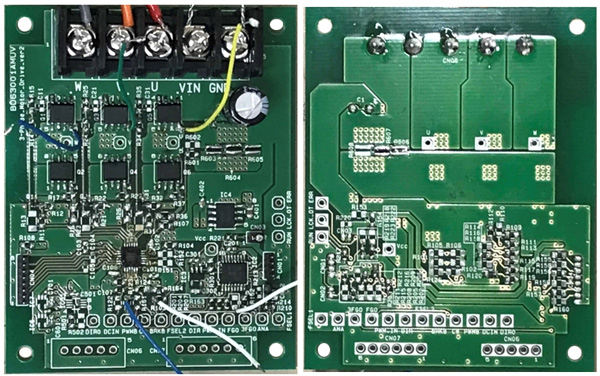

this design consists of a three-hole sensor three-phase brushless dc motor pre-driver and a mosfet. it is an evaluation board that can drive a brushless dc motor with a supply voltage of 12v (typ) and a motor current of 6a (max) by adding a speed control circuit using a microcontroller to the 3 hall sensor 3-phase brushless dc motor drive circuit. it requires only one external power supply. when a hall ic is used, the logic ic can detect the direction of rotation and output a triple multiplier fg.
- 3 hole sensor three phase brushless dc motor pre-driver and output mos p n configuration
- supply voltage 12v(typ)
- output current 6a(max)
- pwm drive with 120 degree commutation.
- rotation direction switching, short braking function
- rotation direction detection output, triple fg output possible (when hall ic is used)
- speed control by mcu is possible.
design resources
- rms332sd-011
specifications
| board number | input voltage | output current | driving method | other features | size | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| rms332sd-011 | 6.0v to 18.0v | 6a(max.) depending on driving capability of mosfet | 3 hole sensor 120 degree commutation | input: control input (dc or pwm), rotation direction switching, short brake. outputs: rotation direction detection, triple multiplier fg output, fg output. |
60mm×75mm |
distribution inventory
| board number | distributor | quantity available |
|---|
key components
| board number | part number | product category | datasheet | status | spice | ltspice | thermal model | symbol & footprint | 3d step | samacsys ecad library | calc tool | rohm solution simulator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| rms332sd-011 | bd450m2efj-c | linear regulators | active | solution simulator | ||||||||
| rms332sd-011 | bd63001amuv | 3 phase brushless dc motor drivers | recommended | - | ||||||||
| rms332sd-011 | rrh140p03 | 12 to 150v mosfets | recommended | - | ||||||||
| rms332sd-011 | rs3e135bn | 12 to 150v mosfets | active | - |
