flyback type pwm mode isolated 12v 1.4a 16.8w
this reference design uses bm2p13b1j.

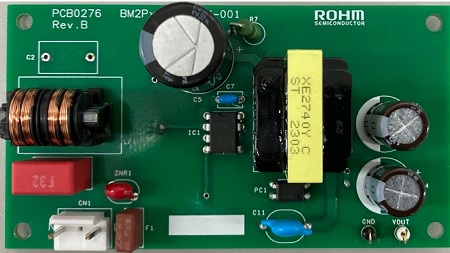

- this evaluation board outputs an isolated voltage of 12 v from an input of 90 vac to 264 vac, and the maximum output current is 1.4 a.
- bm2p13b1j-z which is pwm method dc/dc converter ic built-in 730 v mosfet is used.
- built-in the low on resistor (1.0 ω) and high voltage tolerant mosfet (730 v) make designs easy.
- pwm controller for ac / dc power supplies, the bm2p13b1j provides the optimum system for all products with outlets.
design resources
- bm2p13b1j-evk-001
specifications
| board number | input voltage range | input frequency | output voltage | output current range | maximum output power | standby input power | power supply efficiency | output ripple voltage | oprating temperature | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bm2p13b1j-evk-001 | 90 to 264v | 47 to 63hz | 12.0v(typ.) | 0 to 1.4a | 16.8w(max.) iout = 1.4a | 50mw(typ.) iout=0a | 86.7%(typ.) | 0.07vpp(typ.) *1 | -10 to 65deg.c |
remarks:
*1 not include spike noise
*1 not include spike noise
distribution inventory
| board number | distributor | quantity available |
|---|---|---|
| bm2p13b1j-evk-001 | - | - |
key components
| board number | part number | product category | datasheet | status | spice | ltspice | thermal model | symbol & footprint | 3d step | samacsys ecad library | calc tool | rohm solution simulator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bm2p13b1j-evk-001 | bm2p13b1j-z | ac/dc converters ics | recommended | - | ||||||||
| bm2p13b1j-evk-001 | esr18ezpj | high reliability resistors | recommended | - | ||||||||
| bm2p13b1j-evk-001 | ltr100jzpfl | current detection resistors | recommended | - | ||||||||
| bm2p13b1j-evk-001 | rb088bge150 | schottky barrier diodes | recommended | - | ||||||||
| bm2p13b1j-evk-001 | rfn1lam7s | fast recovery diodes | recommended | - | ||||||||
| bm2p13b1j-evk-001 | rre02vsm4s | rectifier diodes | recommended | - |
