quasi-resonant method isolated 90w 20v 4.5a
this reference design uses bm1q104fj.

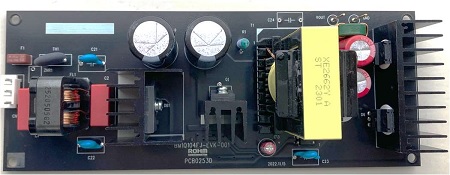

- this evaluation board outputs an isolated voltage of 20 v from an input of 90 vac to 264 vac, and the maximum output current is 4.5 a.
- the bm1q104fj, the qr controller for ac/dc power supplies, provides the optimal system for all products where an outlet is present.
design resources
- bm1q104fj-evk-001
specifications
| board number | input voltage range | input frequency | output voltage | output current range | maximum output power | standby input power | power supply efficiency | output ripple voltage | oprating temperature | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bm1q104fj-evk-001 | 90 to 264v | 47 to 63hz | 20.0v(typ.) | 0 to 4.5a *1 | 90w(max.) *1 | 105mw(typ.) iout=0a vin=230v | 90.4%(typ.) | 0.18vpp(typ.) *2 | -10 to 65deg.c |
remarks:
*1 please adjust operating time, within any parts surface temperature under 105 °c
*2 not include spike noise
*1 please adjust operating time, within any parts surface temperature under 105 °c
*2 not include spike noise
distribution inventory
| board number | distributor | quantity available |
|---|---|---|
| bm1q104fj-evk-001 | 2 | |
| 2 | ||
| 2 | ||
| 2 | ||
| 2 |
key components
| board number | part number | product category | datasheet | status | spice | ltspice | thermal model | symbol & footprint | 3d step | samacsys ecad library | calc tool | rohm solution simulator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bm1q104fj-evk-001 | 2sar523ub | general purpose bipolar transistors | recommended | - | ||||||||
| bm1q104fj-evk-001 | bm1q104fj | ac/dc converters ics | recommended | - | ||||||||
| bm1q104fj-evk-001 | r6524knx3 | 190 to 800v power mosfets | recommended | - | ||||||||
| bm1q104fj-evk-001 | rb500vm-40 | schottky barrier diodes | recommended | - | ||||||||
| bm1q104fj-evk-001 | rf05vam2s | fast recovery diodes | recommended | - | ||||||||
| bm1q104fj-evk-001 | rf2001t3dnz | fast recovery diodes | active | - | ||||||||
| bm1q104fj-evk-001 | rfn1lam7s | fast recovery diodes | recommended | - | ||||||||
| bm1q104fj-evk-001 | rre02vsm4s | rectifier diodes | recommended | - | ||||||||
| bm1q104fj-evk-001 | udzv24b | zener diodes | recommended | - | ||||||||
| bm1q104fj-evk-001 | udzv39b | zener diodes | recommended | - |
