non-isolation buck converter pwm method output 6w 12v

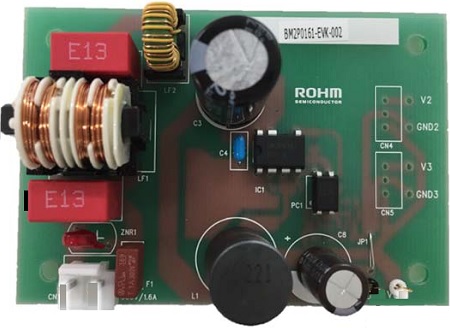

the bm2p0161-evk-002 evaluation board outputs 12v voltage from the input of 90vac to 264vac. the output current supplies up to 0.5a. bm2p0161 which is pwm method dc/dc converter ic built-in 650v mosfet is used.
- the bm2p0161 contributes to low power consumption by built-in a 650v starting circuit.
- current mode control imposes current limitation on every cycle, providing superior performance in bandwidth and transient response.
- the switching frequency is 65khz in fixed mode. at light load, frequency is reduced and high efficiency is realized.
- built-in frequency hopping function contributes to low emi. low on-resistance 1.0ω 650v mosfet built-in contributes to low power consumption and easy design.
- the flywheel diode is a fast recovery diode of 3a/600 v rfn3bm6s, contributing to low power consumption.
- the conduction / radiation emission test is based on cispr 22 class b with best emi design.
design resources
- bm2p0161-evk-002
specifications
board number | input voltage | input frequency | output voltage | maximum output power | output current range | stand-by power | efficiency | output ripple voltage | size | operating temperature | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
bm2p0161-evk-002 | 90 to 264vac | 47 to 63hz | 12v(typ.) | 6.0w iout=500ma | 0 to 500ma *1 | 31mw iout=0a | 0.795 | 59mvpp *2 | 55mm x 80mm | -10 to 65deg.c |
remarks:
*1 please adjust operating time, within any parts surface temperature under 105 °c
*2 not include spike noise
*1 please adjust operating time, within any parts surface temperature under 105 °c
*2 not include spike noise
distribution inventory
board number | distributor | quantity available |
---|---|---|
bm2p0161-evk-002 | 2 | |
1 | ||
1 |
key components
board number | part number | product category | datasheet | status | spice | ltspice | thermal model | symbol & footprint | 3d step | samacsys ecad library | calc tool | rohm solution simulator |
---|---|---|---|---|---|---|---|---|---|---|---|---|
bm2p0161-evk-002 | bm2p0161-z | ac/dc converters ics | recommended | - | ||||||||
bm2p0161-evk-002 | rre02vsm6s | rectifier diodes | recommended | - |
