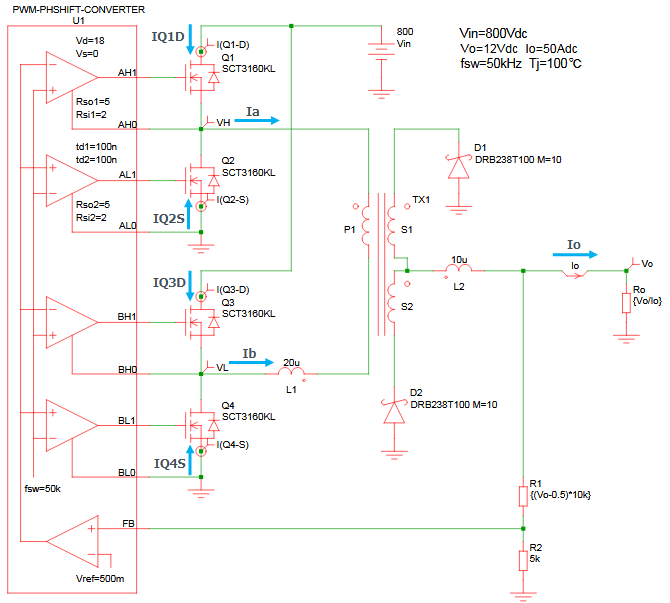

features:
  • input : vin=800vdc
  • output : vo=12vdc

    io=50adc

  • gatedrive : vd=18v

    r source=5ω
    r sink=2ω

  • q1,q2,q3,q4 : sct3160kl

    sic mosfet (1200v 17a)

  • d1,d2 : rb238t100

    sbd (40v 20a)

  • l1 : 20uh, l2 : 10uh
  • tj : 100°c
