features:
  • input : vin=800v
  • output : vo=25v

    io=10a

  • gatedrive : vd=18v

    r source=5ω
    r sink=2ω

  • q1 : sct2450ke

    sic mosfet (1200v 10a)

  • d1 : scs320ahg

    sic sbd (650v 20a)

  • d2 : scs205kg

    sic sbd (1200v 5a)

  • c1 : 10nf,   c2 : 100uf
  • tj : 100°c

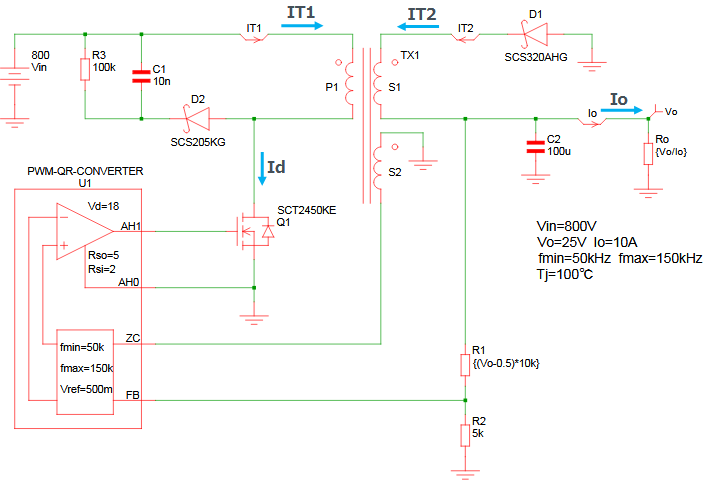

block diagram:
