rb088lam-尊龙凯时ag旗舰
60v, 5a, 车载肖特基势垒二极管（aec-q101标准）主要规格
特性：
configuration
single
package code
sod-128
mounting style
surface mount
number of terminal
2
vrm[v]
60
reverse voltage vr[v]
60
average rectified forward current io[a]
5
ifsm[a]
90
forward voltage vf(max.)[v]
0.71
if @ forward voltage [a]
5
reverse current ir(max.)[ma]
0.004
vr @ reverse current[v]
60
package size [mm]
2.5x4.7 (t=1.05)
common standard
aec-q101 (automotive grade)
特点：
- small power mold type (pmdtm)
- high reliability
- super low ir
reference design / application evaluation kit
-

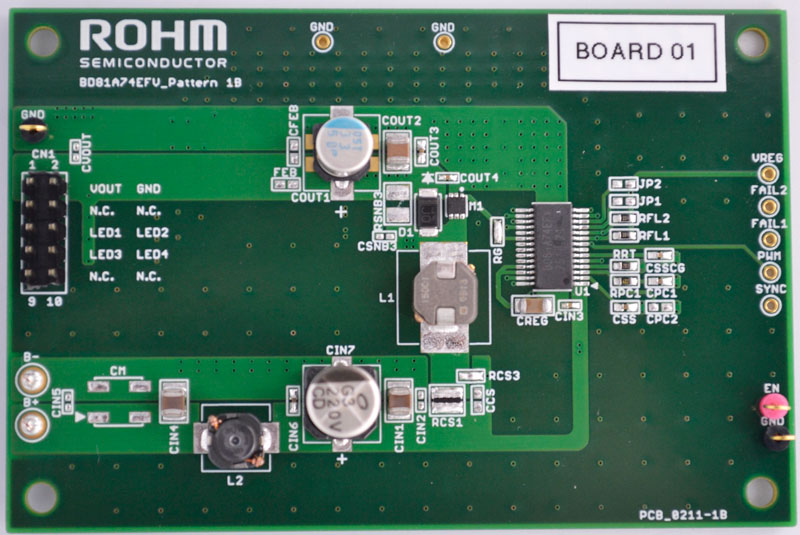

- evaluation board - bd81a74efv-tsb-001
4ch white led driver built-in current driver boost dc-dc converter for automotive bd81a74efv-m
| application note | user guide | brief | layout (pdf) | layout (cad data) |
|---|---|---|---|---|
-

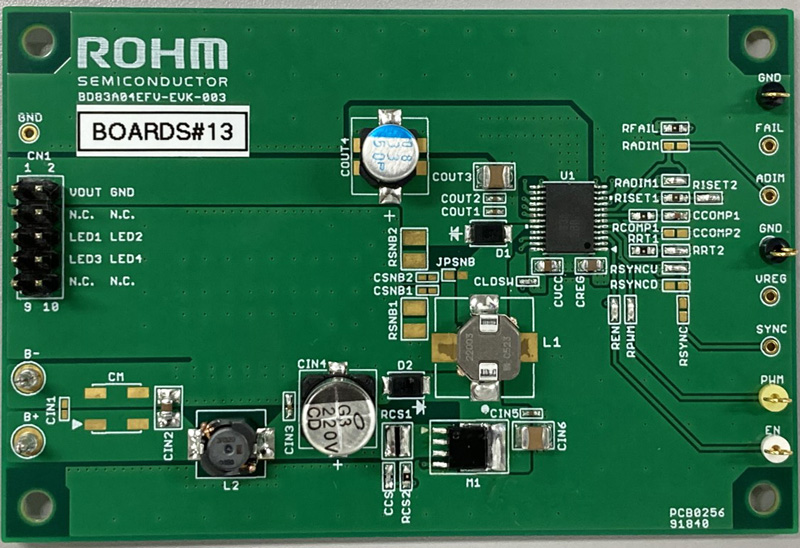

- evaluation board - refled002-evk-001
4ch white led driver built-in current driver boost dc-dc converter for automotive bd83a04efv-m
| user guide | test report | schematic | part list | layout (pdf) | layout (cad data) |
|---|---|---|---|---|---|
-

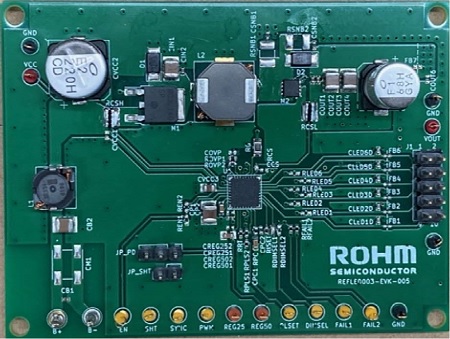

- evaluation board - refled003-evk-001
6ch white led driver built-in current driver boost dc-dc converter for automotive 8pcs 750ma
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

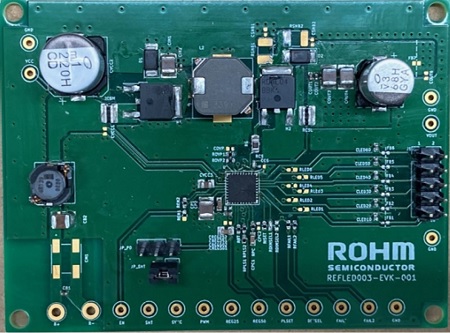

- evaluation board - refled003-evk-002
6ch white led driver built-in current driver boost dc-dc converter for automotive 12pcs 625ma
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

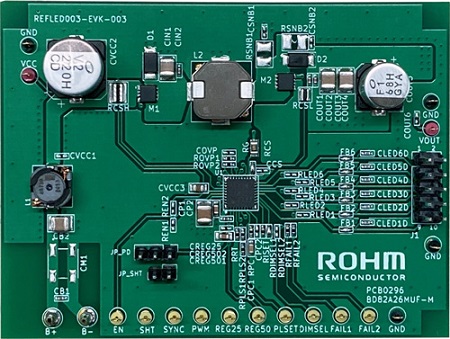

- evaluation board - refled003-evk-003
6ch white led driver, built-in current driver, boost dc-dc converter for automotive 8pcs 750ma
| user guide |
|---|
-
- evaluation board - refled004-evk-001
4ch white led driver built-in current driver boost dc-dc converter for automotive bd83a14efv-m
| user guide | test report | schematic | part list | layout (pdf) |
|---|---|---|---|---|
-

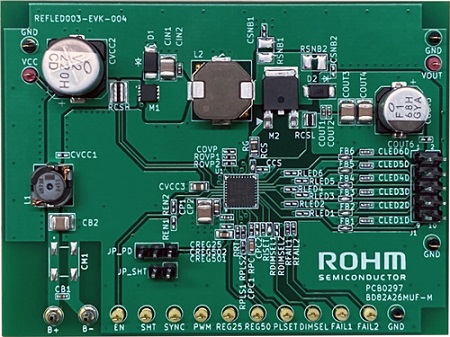

- evaluation board - refled003-evk-004
6ch white led driver, built-in current driver, boost dc-dc converter for automotive 12pcs 625ma
| user guide |
|---|
