1ss355vm-尊龙凯时ag旗舰
switching diodes主要规格
特性：
configuration
single
package code
sod-323fl
package(jeita)
sc-90a
mounting style
surface mount
number of terminal
2
vrm[v]
90
reverse voltage vr[v]
80
average rectified forward current io[a]
0.1
ifm[a]
0.225
isurge[ma]
500
forward voltage vf[v]
1.2
if @ forward voltage [ma]
100
reverse current ir[µa]
0.1
vr @ reverse current [v]
80
trr[ns]
4
if @ trr [ma]
10
vr @ trr [v]
6
storage temperature (min.)[°c]
-55
storage temperature (max.)[°c]
150
package size [mm]
1.25x2.5 (t=0.9)
特点：
・超小型塑胶型。・高可靠性。
・构造：硅外延高压型
reference design / application evaluation kit
-

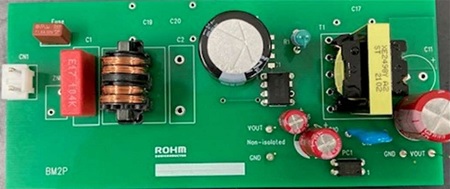

- evaluation board - bm2p0161-evk-004
c isolated 13.5 v 1.3 a non-isolated 20 v 0.1 a
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bd7682fj-lb-evk-402
isolation fly-back converter quasi-resonant method output 24 w 24 v
| user guide | block diagram | schematic | part list | layout (pdf) |
|---|---|---|---|---|
-
- evaluation board - bm2scq123t-evk-001
built-in sic mosfet isolation fly-back converter qr method output 48 w 24 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2sc123fp2-evk-001
built-in sic mosfet isolated fly-back converter qr method output 48 w 24 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p061mf-evk-001
flyback type pwm mode isolated 5v 2a 12v 1a non-isolated 18.7v 0.1a 24w
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
