超快速恢复二极管rfn1lam6s是适合一般整流用途的快速恢复二极管。
本产品不建议使用于车载设备。
主要规格
特性：
configuration
single
package code
sod-128
mounting style
surface mount
number of terminal
2
vrm[v]
600
reverse voltage vr[v]
600
average rectified forward current io[a]
0.8
ifsm[a]
15
forward voltage vf(max.)[v]
1.45
if @ forward voltage [a]
0.8
reverse current ir(max.)[ma]
0.001
vr @ reverse current [v]
600
trr(max.)[ns]
35
if @ trr [ma]
0
ir @ trr [a]
1
storage temperature (min.)[°c]
-55
storage temperature (max.)[°c]
150
package size [mm]
2.5x4.7 (t=1.05)
特点：
reference design / application evaluation kit
-
non-isolated pwm type buck convertor 8w 20v output
| user guide | schematic | part list | layout (pdf) | layout (cad data) |
|---|---|---|---|---|
-
- evaluation board - bm2p109tf-evk-001
non-isolation buck converter pwm method output 2 w 10 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p129tf-evk-001
non-isolation buck converter pwm method output 2 w 12 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p139tf-evk-001
non-isolation buck converter pwm method output 2.6 w 13 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

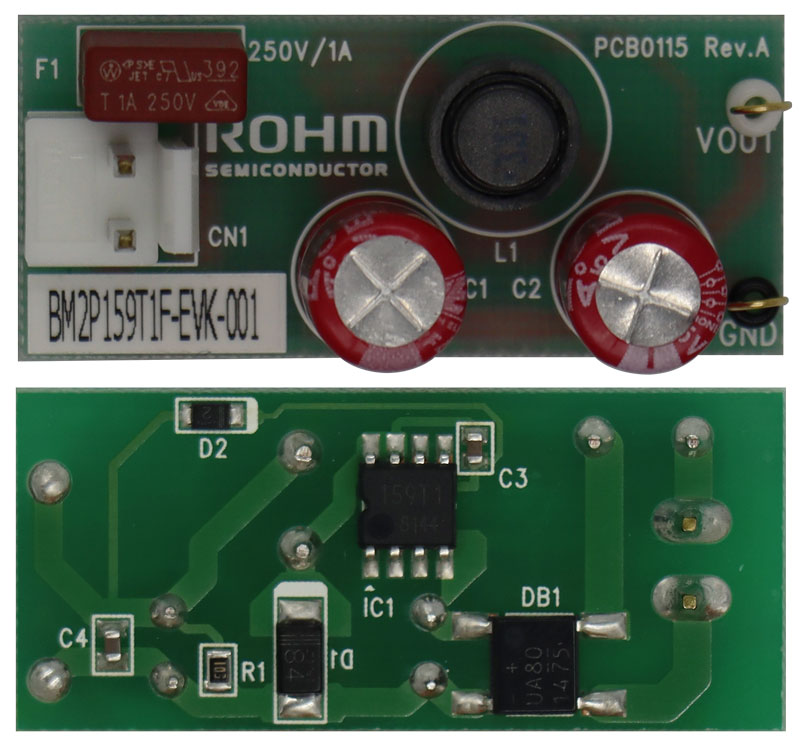

- evaluation board - bm2p159t1f-evk-001
non-isolation buck converter pwm method output 2.6 w 15 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p189tf-evk-001
non-isolation buck converter pwm method output 3 w 18 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p209tf-evk-001
non-isolation buck converter pwm method output 3 w 20 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p249tf-evk-001
non-isolation buck converter pwm method output 3 w 24 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p129tf-evk-002
non-isolation buck converter pwm method output 2w -12v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm1z002fj-evk-001
non-isolated ac voltage detection zero crossing
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm1z002fj-evk-002
isolated ac voltage detection zero crossing
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm1z102fj-evk-001
ac voltage detection zero-cross ic high precision dc voltage output type
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
